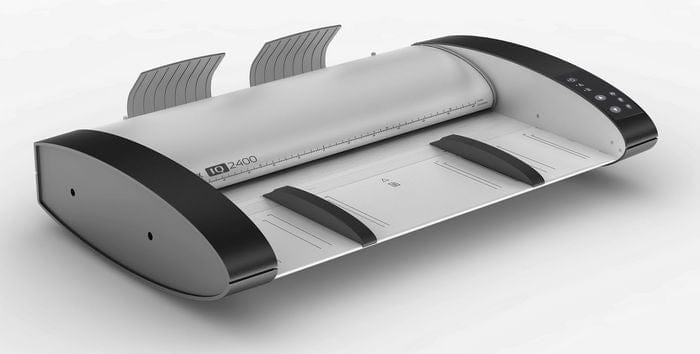

Contex IQ Quattro 2490 24" A1 Colour Scanner
Contex IQ Quattro 2490 24" A1 Colour Scanner
Optimal image quality with dual-sided LED light. Eliminates wrinkles and folds in originals.
Faster: Spend less time scanning and instead focus on what matters to you. Scan small and large documents up to A1/D-size.
Smarter: IQ Quattro is networked with your entire workgroup and Cloud enabled so anybody in your project team can use it from their smartphone. IQ Quattro is networked with your entire workgroup and Cloud enabled so anybody in your project team can use it from their smartphone.
Better: Shadows and unwanted background are suppressed leaving you with crisp, sharp and natural scans – ready to be used in your continued workflow.
Unique technology: With Contex ClearScan CIS modules, superfast Ethernet and award-winning Nextimage software, Contex IQ Quattro is the leading scanner for technical projects.
The IQ Quattro scanner is the 4th generation CIS scanner from Contex. It is available 24 and 44 inches and contains proven technology from our CCD range and CIS technology refined to match our customer's requirements for high quality, speed and ease of use.
IQ Quattro scanners are ideal for project groups. Scan documents and enhance your files in AutoCAD.
Up to A1/D-size originals
Return guides for easy document handling, by returning documents to the user with rewind through scanner. Return guides are detachable. Magnetic document guides can be used to support long documents and make precise document loading easier.

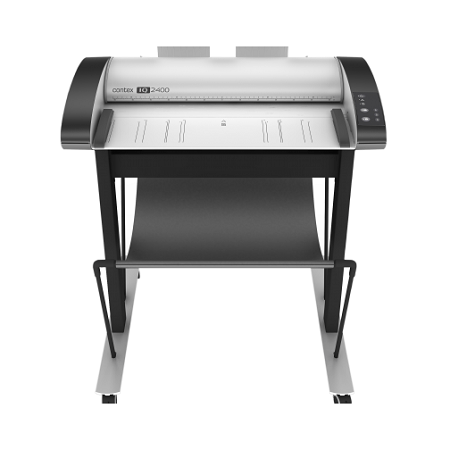

Designed for the optimal ergonomic working environment. Height-adjustable stand in 3 positions.
Contex ClearScan - provides leading quality
With new methods for diffusion, you will get the most natural light in your scans.
More power in every pixel
Contex ClearScan CIS modules with unmatched image quality combined with the award-winning Nextimage Software.
PageDrop Enabled
Any PageDrop enabled Contex scanner can send documents directly to your preferred destinations. PageDrop does not require a PC. Instead, it simply utilizes your smartphone or tablet to control the process. Load the document, scan the QR code, and send the document directly to your desired destination.
Improve your workflow and communicate effectively
Avoid delays and save on courier and out-of-house printing expenses. This professional sheet-feed plug‘n’play scanner should fit with your existing software and printers. Get precise, accurate images with high 1200 DPI optical resolution and save on file space with intelligent 8-bit indexed colour capture – ideal for archiving many types of files. Also available as MFP solutions with your existing printer for easy scan-to-copy.
Key features
|
Contex IQ 2490 | |
Optical Resolution | 1200dpi |
Maximum Resolution | 9600dpi |
Maximum Scan Width | 24in. (610mm) |
Maximum Scan Length | Unlimited |
Maximum Media Width | 26.6in. (676mm) |
Maximum Media Thickness | 0.08-inch (2mm) flexible documents only |
Accuracy | ± 0.1% +/- 1 pixel |
Data Capture (color/mono) | 48-bit/16-bit |
Colour Space | Adobe RGB / sRGB / Device RGB |
Interface | USB with DTR and Gb Ethernet with xDTR2 |
Power Requirements | 110V / 220V / 240V, 60/50 Hz, 25W |
Power Consumption (Ready / Power Save / Scanning) |
8W / 1W / 18W – ENERGY STAR compliant |
Weight & Dimensions LxDxH |
Dimensions: 824x480x161 mm Weight: 16.2 Kilos |
Certifications/Compliance | CE, cUL, VCCI, FCC Class A, RoHS, GOST-R and ENERGY STAR |
Software | Nextimage 30-day trial included |
Software | AutoCAD®, MicrostationTM, ArcGISTM and all other CAD, GIS and other image editing/storage applications 1) |
Device Drivers | 32 & 64-bit Windows 7, XP and Vista |
Nextimage TWAIN | 32-bit TWAIN application driver included for use with EDM and other imaging software |
Scanning Speed (inch/sec.): Scanner speed while scanning 24-inch wide document. 2) | |
400dpi (Turbo) RGB Colour | 3.0 |
400dpi (Turbo) Grayscale/Monochrome | 10.0 |
Productivity (documents/hour): Batch scanning for 60 minutes. Includes paper load and eject time. Measured in completed scans. | |
D-size, RGB Colour, 200dpi | 250 |
D-size, Monochrome, 200dpi | 539 |
A1-size, RGB Colour, 200dpi | 240 |
A1-size, Monochrome, | 514 |
Contex 2-year warranty and fast, easy parts replacement
With Contex, vital scanner parts replacement is quick, easy and hassle-free. Your Contex system monitors vital parts such as lamp and dust filters and lets you know when it’s time to consider a replacement.
